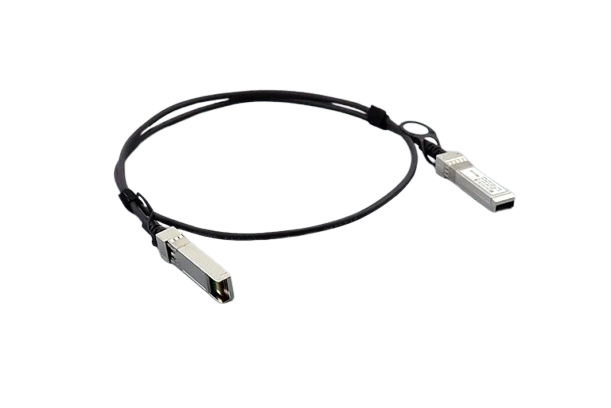

A DAC (Direct Attach Copper) cable features a fixed length of twinax copper cable with pre-terminated transceivers on both ends, designed for short-distance, high-speed data connections within a network, typically used in data centers; key specifications include: low latency, high bandwidth, compatibility with various data rates (like 10G, 40G, 100G), limited cable length (usually up to 15 meters), various connector types (like SFP+, QSFP+), and a copper construction with different AWG gauges depending on the desired data rate; DAC cables can be passive (no signal amplification) or active (with electronic components for longer distances) depending on the application.

Key features:

• Short distance connectivity:

  Primarily used for short connections within a rack or between adjacent racks due to signal attenuation over longer distances.

• High bandwidth:

  Capable of supporting high data rates like 10Gbps, 40Gbps, and 100Gbps depending on the cable type and connector.

• Low latency:

  Provides minimal data delay due to the short copper cable length.

• Cost-effective:

  Generally cheaper than fiber optic cables for short-distance connections.

• Easy installation:

  Plug-and-play design with pre-terminated connectors.

• Compact size:

  Smaller and more flexible than fiber optic cables.

• Connector types:

  SFP+, SFP28, QSFP+, QSFP28 (depending on data rate and application)

• AWG gauge:

   Typically 24AWG, 28AWG, or 30AWG, with lower AWG indicating thicker cable for higher data rates

• Jacket material:

   PVC (Polyvinyl chloride)

• Operating temperature range:

   0°C to 70°C

• Cable length: Varies depending on data rate, usually ranging from 0.5m to 15m

• Passive vs Active:

   Passive DACs are simpler and cheaper but have shorter reach, while active DACs can reach longer distances with the help of electronic amplification

• Function: Primarily used for high-bandwidth data transmission between devices situated close together within a data center rack, offering a cost-effective solution for short-range connections.

• Construction: Composed of a twinax copper cable with pre-attached transceiver modules on both ends, which cannot be separated.

• Connector types: Common connector types include SFP+, SFP28, QSFP+, depending on the data rate required.

• Passive vs Active:

• • Passive DAC:

    A basic DAC with no signal amplification, suitable for very short distances and lower data rates.

  • Active DAC:

    Contains electronics to boost signal strength, allowing for longer reach at higher data rates, but at a higher cost.

Advantages:

• Cost-effective:

  Generally cheaper than using separate optical transceivers due to the simplified design.

• Easy installation:

  Plug-and-play connectivity with no need for additional fiber optic components.

• Low power consumption:

  Compared to optical transceivers, DACs typically use less power.

• No heat produced

• High reliability

• Can be used to connect large amounts of bandwidth

DAC cable limitations

• Transmission modules cannot be removed from the cable, so all DAC cables are a fixed length
• A Direct attach cable (DAC) is a type of copper cable that connects data center equipment like servers, switches, and storage devices. DAC cables are cost-effective, efficient, and easy to install.

How DAC cables work

• DAC cables are factory terminated with pluggable transceivers on each end.

• DAC cables can be passive or active. Passive DAC cables don’t condition signals, while active DAC cables have electronics to boost signals.

• DAC cables are available in different lengths, usually up to 15 meters.

• DAC cables are used to connect equipment in racks.
